Gabor Filter script
This is an example of how to create Gabor filters in Fiji using Beanshell scripting. The script will create and apply a set of Gabor filters to the currently selected image.
Five different parameters can be adjusted:
- Sigma, which defines the size of the Gaussian envelope
- Psi, the phase offset
- Gamma, which is the spatial aspect ratio, and specifies the ellipticity of the support of the Gabor function.
- Fx, the frequency of the sinusoidal component
- nAngles, the number of filter orientations
As result, the script will display the set of filters, the filtered version of the original image for each orientation, and the projections (average, min, max, mean and variance) of the stack of filtered images.
Example

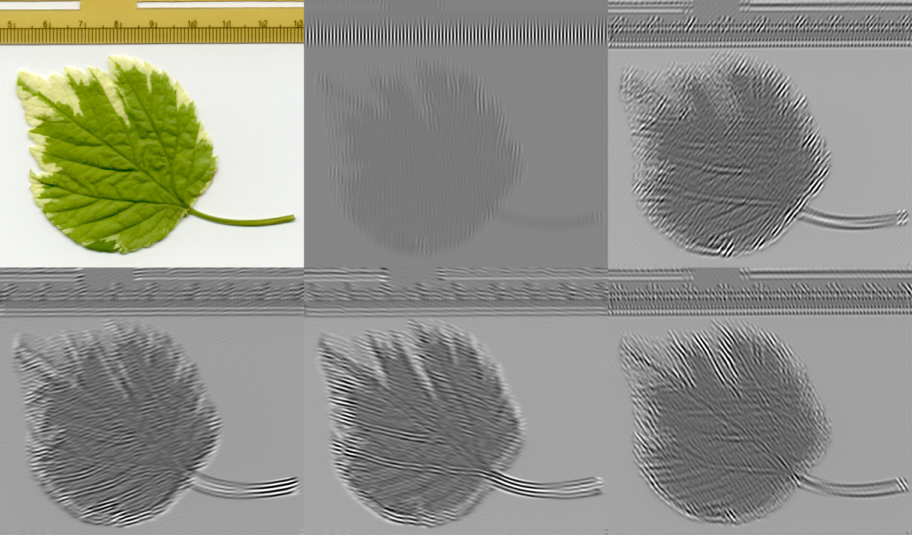

This is an example of the script results using the Leaf sample image ( File › Open Samples › Leaf (36K)) and sigma = 8.0, gamma = 0.25, psi = 0.0, Fx = 3.0, nAngles = 5.
Code
import ij.*; import ij.process.*; import ij.plugin.filter.*; import ij.plugin.ContrastEnhancer; import ij.plugin.ZProjector; /** * This script calculates a set of Gabor filters over the selected image. * * Parameters: sigma, gamma, psi, Fx, nAngles */ // Sigma defining the size of the Gaussian envelope sigma = 8.0; // Aspect ratio of the Gaussian curves gamma = 0.25; // Phase psi = Math.PI / 4.0 * 0; // Frequency of the sinusoidal component Fx = 3.0; // Number of diferent orientation angles to use nAngles = 5; // copy original image and transform it to 32 bit originalImage = IJ.getImage(); originalImage = new ImagePlus(originalImage.getTitle(), originalImage.getProcessor().convertToFloat()); width = originalImage.getWidth(); height = originalImage.getHeight(); // Apply aspect ratio to the Gaussian curves sigma_x = sigma; sigma_y = sigma / gamma; // Decide size of the filters based on the sigma largerSigma = (sigma_x > sigma_y) ? (int) sigma_x : (int) sigma_y; if(largerSigma < 1) largerSigma = 1; ip = originalImage.getProcessor().duplicate(); sigma_x2 = sigma_x * sigma_x; sigma_y2 = sigma_y * sigma_y; // Create set of filters filterSizeX = 19; //6 * largerSigma + 1; filterSizeY = 19; //6 * largerSigma + 1; middleX = (int) Math.round(filterSizeX / 2); middleY = (int) Math.round(filterSizeY / 2); is = new ImageStack(width, height); kernels = new ImageStack(filterSizeX, filterSizeY); rotationAngle = Math.PI/(double)nAngles; // Rotate kernel from 0 to 180 degrees for (i=0; i<nAngles; i++) { theta = rotationAngle * i; filter = new FloatProcessor(filterSizeX, filterSizeY); for (int x=-middleX; x<=middleX; x++) { for (int y=-middleY; y<=middleY; y++) { xPrime = (double)x * Math.cos(theta) + (double)y * Math.sin(theta); yPrime = (double)y * Math.cos(theta) - (double)x * Math.sin(theta); a = 1.0 / ( 2.0 * Math.PI * sigma_x * sigma_y ) * Math.exp(-0.5 * (xPrime*xPrime / sigma_x2 + yPrime*yPrime / sigma_y2) ); c = Math.cos( 2.0 * Math.PI * (Fx * xPrime) / filterSizeX + psi); filter.setf(x+middleX, y+middleY, (float)(a*c) ); } } kernels.addSlice("kernel angle = " + theta, filter); } // Show kernels ip_kernels = new ImagePlus("kernels", kernels); ip_kernels.show(); // Apply kernels for (i=0; i<nAngles; i++) { theta = rotationAngle * i; c = new Convolver(); kernel = (float[]) kernels.getProcessor(i+1).getPixels(); ip = originalImage.getProcessor().duplicate(); c.convolveFloat(ip, kernel, filterSizeX, filterSizeY); is.addSlice("gabor angle = " + i, ip); } // Normalize filtered stack c = new ContrastEnhancer(); for(int i=1 ; i <= is.getSize(); i++) { c.stretchHistogram(is.getProcessor(i), 0.4); } projectStack = new ImagePlus("filtered stack",is); IJ.run(projectStack, "Enhance Contrast", "saturated=0.4 normalize normalize_all"); resultStack = new ImageStack(width, height); zp = new ZProjector(projectStack); zp.setStopSlice(is.getSize()); for (int i=0;i<=5; i++) { zp.setMethod(i); zp.doProjection(); resultStack.addSlice("Gabor_" + i +"_"+sigma+"_" + gamma + "_"+ (int) (psi / (Math.PI/4) ) +"_"+Fx, zp.getProjection().getChannelProcessor()); } // Display filtered images (new ImagePlus("gabor, sigma="+sigma+" gamma="+gamma+ " psi="+psi, is)).show(); result= new ImagePlus ("Gabor stack projections", resultStack) ; IJ.run(result, "Enhance Contrast", "saturated=0.4 normalize normalize_all"); result.show();
